Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SunnyPower
  • Model Number: SPM-330W,300W,250W,200W,150W,100W,80W,50W,40W,30W,20W,10W,5W
  • Material: Polycrystalline Silicon
  • Size: 1580x808x40mm
  • Number of Cells: 72
  • Max. Power: 330W
  • Power Tolerance: ±3%
  • Voltage at max power(Vmp): 34.9V
  • Current at max power(lmp): 5.87A
  • Open circuit voltage(Voc): 42.3V
  • Short ciruit current(Lsc): 6.46A
  • Operating Temperature: -40℃to+85℃
  • Maximum Series Fuse Rating: 15A
  • Solar cell: Monocrystalline silicon cell 125x125mm(5inch)
  • Weight: 19.3kg
  • Junction Box: Ip65 rated

Packaging & Delivery

Packaging Details Carton and plywood pallet

330W,300W,250W,200W,150W,100W,80W,50W,40W,30W,20W,10W,5W solar panels high efficiency



Product Description

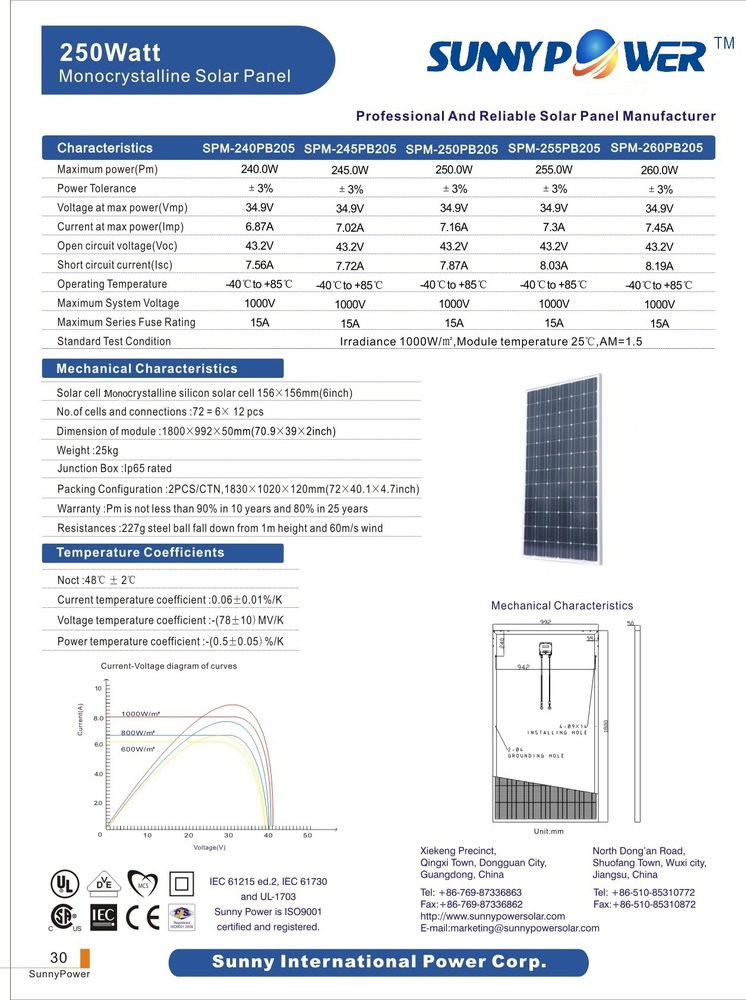

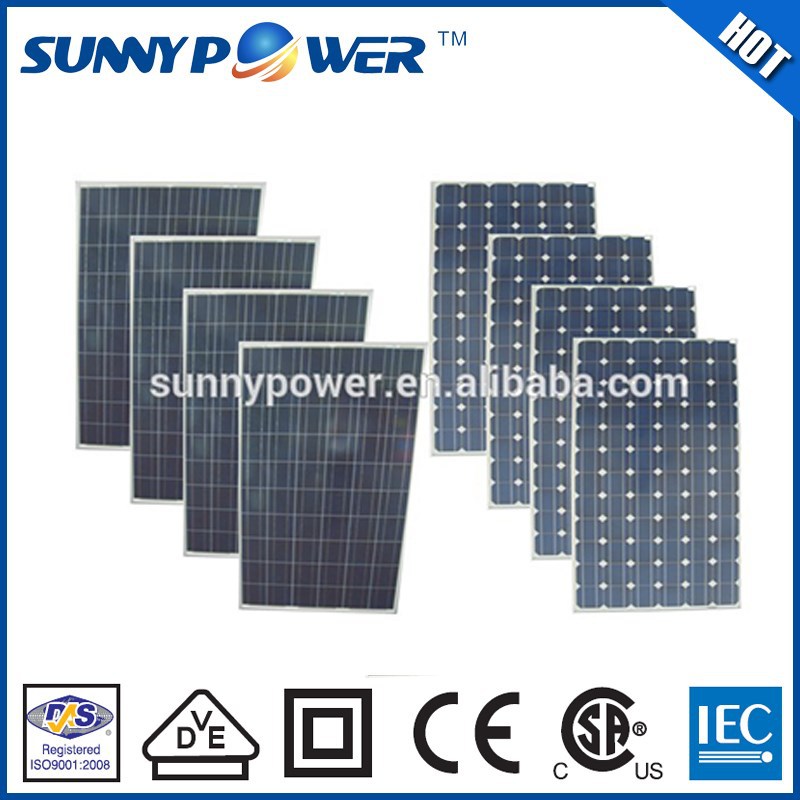

 1. The product picture of solar panel




2.The product introduction of solar panel





For more solar panel pls click:

330W/300W/250W/200W/150W/100W/80W/50W/40W/30W/20W/10W/5W

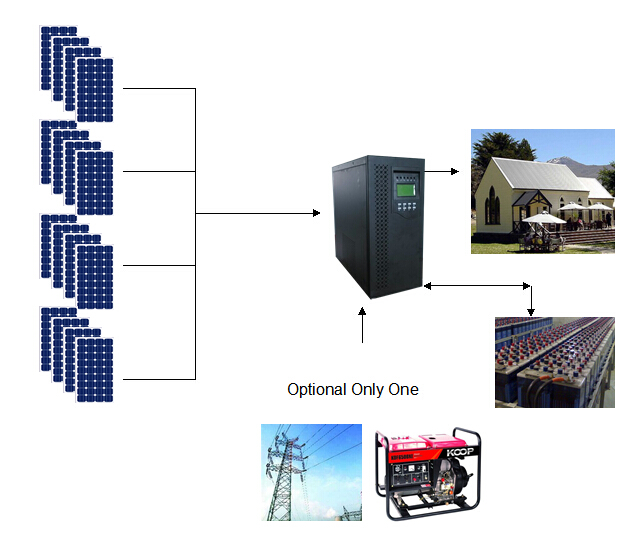

solar system

Technical data:
Item No.SPS-5KW
Capacity5KW
System voltage96VDC
Daily consumption11KWH
Industrial Frequency Inverter and Controller All In One
Inverter Output wavePure sine wave
Output voltageAC220V/380VAC±5%
Output frequency50HZ/60HZ
Output WaveformTHDIAC< 3 %
Overload ability120%,30 seconds
Efficiency(TYP.)≥92%
ControllerMaximum solar powerPpv=12KWp
Charge output voltage 240V
Stop charging290VDC
Charge recovery264±6VDC
Battery 12V 260AH*8pcs Gel or OPZV battery24960WH

Keep1rainy day and D.O.D 70% ,if rainy day little ,

battery capacity more,discharge less, extend life time

Solar panel Pmax250W*20pcs
Vmp30V
Imp8.3A



Load reference:
SPS-5KW solar home system
loads namespecificationDaily
consumption (WH)
lightingenergy saving light880
Fanceiling fan800
ComputerLCD displays2400
printerjet250
fax machinejet150
refrigerator200L1200
washing machine 150
Air conditioner1P3000
Color TV29inch1600
pump 200
TOTAL  10630
Peak sunshine 4.5hr per day, keep 1 rainy day



5KW solar system  Solution
ItemSpecificationQ'ty(pcs or sets)
5KW  Solar Power System  solar panel 250W/30V(SPM-250PB204) with cables20
5KW power box,96VDC/220AC,with diesel engine switch1
combiner box(lightning protection) with cables 1
battery steel bracket and Connect the copper/wire1
solar panel steel alloy bracket  ( Ground installation )1

Cables : solar combiner box to power box

40M battery to power box  3M

1
optionGEL battery  2V 350Ah48
OPZV battery 2V 350Ah48





For more solar panel system pls click:

portable solar lighting system 10w-120w

(SPS-PLA1-60W/80w/100w/120w)/(SPS-PSA1- 10w/20w/30w/40w/60w)/ (SPS-PMB2- 20W/40W/60W/80W/100W/120W)/ (SPS-PMA1-1210w/1220w/1240w/1260w/1280w/12100w)

Integrated solar home system  100w-1000w

(SPS150-25)/(SPS300-60)/(SPS500-200)/(SPS1000-270)

off-grid solar home system 1kw-50kw





(SPS-CWA1-0500)/ (SPS-CWA1-0800)/ (SPS-CWA1-1000)/ (SPS-CWA1-0400)/ (SPS-CWA1-0150)/ (SPS-CWA1-0100)/ (SPS-CWA1-0050)/ (SPS-CWA1-0300)/ (SPS-CWA1-0200)



3. More products pls click below





Company Information

 Company Show

 Exhibition Photo



Our Services



 Contact us



FAQ

1. Q:What is your brand of the solar material solar cells?

A:We import the solar cells from TAIWAN MOTECH,the top 5 cells in the world,the

cells quality directly determine the quality of the solar solar panel 500w.

2. Q:Are u manufacture or trading company?

A:We are manufacture founded 10years.

3. Q:How many employees in your company?

A:We have about 100~150 employees,including office staff,R&D engineers,production line workers.

4. Q:What is ur certification?

A:Our product are approved by  ISO, CE, VDE IEC, MCS, CSA-UL, CEC.

5. Q:Your main export market?

A:Our main market is: Asia,Africa,Mid-East, Oceania and North America

6. Q:What is ur main product?

A:Our main product: solar solar panel 500w, portable solar lighting system,intergrated solar home system 100W~1000W,off grid solar home system 1kw~5kw,micro solar power system 5kw~300kw,grid tie solar power system,solar street LED light system,solar fan,solar refrigerator,solar water pump and so on.

7. Q:What is your product technical support

A:We makes progress in the field of new energy application, product R&D, technical innovation, system integration, etc. by responding to the national strategy of new energy development and adhering to “development & innovation “management concepts.Our

company partner  Shanghai Academy of Sciences, Hubei Technology University and Huazhong Science & Technology University, to provide product and service for

clean energy.
