Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SunnyPower
  • Model Number: SPM-100SB301
  • Material: Monocrystalline Silicon
  • Size: 1200x540x25mm
  • Number of Cells: 36pcs
  • Max. Power: 100.0w
  • Power Tolerance: ±5%
  • Voltage at max power(Vmp): 17.4V
  • Current at max power(lmp): 5.75A
  • Open circuit voltage(Voc): 21.6V
  • Short ciruit current(Lsc): 6.33A
  • Operating Temperature: -40℃to+85℃
  • Maximum Series Fuse Rating: 8A
  • Solar cell: Monocrystalline silicon cell 156x156mm(6inch)
  • Weight: 8.5kg
  • Junction Box: Ip65 rated

Packaging & Delivery

Packaging Details: Carton and plywood pallet
Delivery Detail: 10 Days

100w solar panel roof with full Certifications



Product Description

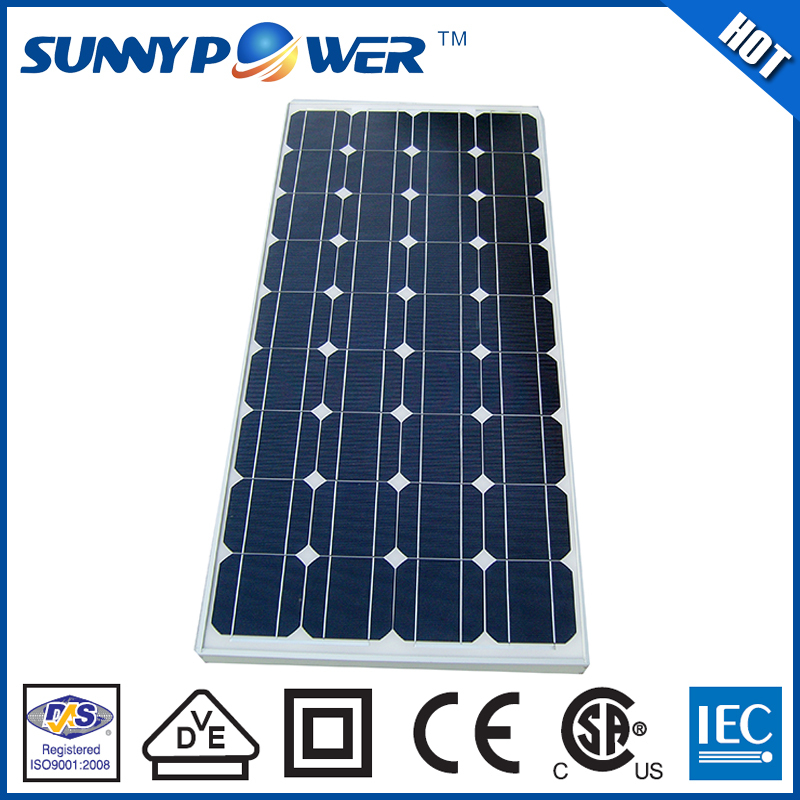

1. The product picture of solar panel roof

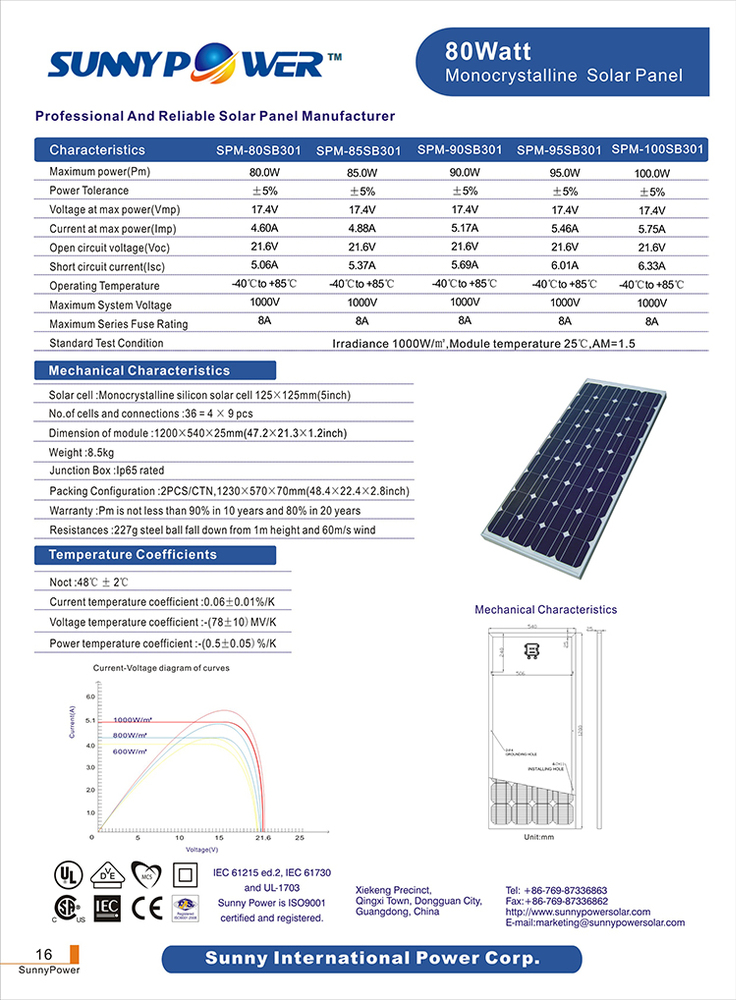

2.The product introduction of solar panel roof

Solar Panel Features:

1, Made of high efficiency 156mm x 156 mm monocrystalline solar cells( TAIWAN MOTECH brand solar cells ).
2, 90cm long cables with male and female connectors for easy connections with other solar panels.
3, anti-reflective coating provides uniform black color and increases absorption of light in all weather conditions.
4, Industrial strength double EVA encapsulation with TPT multilayer backsheet for the best protection against water, moisture, UV, and oxidation.
5, Anodized aluminum frame provides structural strength and holes drilled at the right places for easy mounting, and drain holes to minimize water build up behind solar panels.

6, With VDE(IEC61215&IEC61730),CSA(UL1703), California Energy Commission (CEC)& CE certificate

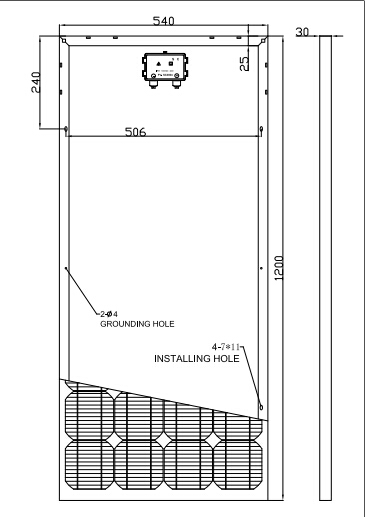

  3. Design drawings

  4. More products introduction

5. More products pls click below





Company Information

 Company Show

 Exhibition Photo



Our Services



 Contact us



FAQ

1. Q:What is your brand of the solar material solar cells?

A:We import the solar cells from TAIWAN MOTECH,the top 5 cells in the world,the

cells quality directly determine the quality of the solar panels.

2. Q:Are u manufacture or trading company?

A:We are manufacture founded 10years.

3. Q:How many employees in your company?

A:We have about 100~150 employees,including office staff,R&D engineers,production line workers.

4. Q:What is ur certification?

A:Our product are approved by  ISO, CE, VDE IEC, MCS, CSA-UL, CEC.

5. Q:Your main export market?

A:Our main market is: Asia,Africa,Mid-East, Oceania and North America

6. Q:What is ur main product?

A:Our main product: solar panels, portable solar lighting system,intergrated solar home system 100W~1000W,off grid solar home system 1kw~5kw,micro solar power system 5kw~300kw,grid tie solar power system,solar street LED light system,solar fan,solar refrigerator,solar water pump and so on.

7. Q:What is your product technical support

A:We makes progress in the field of new energy application, product R&D, technical innovation, system integration, etc. by responding to the national strategy of new energy development and adhering to “development & innovation “management concepts.Our

company partner  Shanghai Academy of Sciences, Hubei Technology University and Huazhong Science & Technology University, to provide product and service for

clean energy.



More Solar Panel Please Click below:

Polycrystalline solar panels

Monocrystalline solar panels
